Logic UH

The best solution for your Problem


Logic UH serves as a robust adhesive for both surface cracks and joint cracks. Additionally, it can be employed to create a barrier in situations where openings lead to moisture issues between the wall and the foundation.

How to repair concrete cracks ?

Logic UH

For inquiries and to request a quote, please don't hesitate to get in touch with us. At Logic Chemie, our utmost priority is to ensure the correct and optimal utilization of our products in various technical applications. By working together, we can unlock the full potential of our products, leading to the best possible results.

send Message send Message
  • WHY TO USE LOGIC UH

  • WHERE TO USE LOGIC UH

  • HOW TO USE LOGIC UH

Where can Logic UH be applied for crack prevention?

LOGIC UH

Benefits of our Product

The unique formulation of Logic UH enables it to effectively inhibit water evaporation within concrete while providing robust protection against sulfate-induced pressure, thereby averting the formation of expansion cracks. Following treatment with Logic UH, your surface remains safeguarded from cracking for an extended duration.

WHY TO USE

LOGIC UH

To address expansion cracks on your concrete surface, the recommended solution is to seal them using Logic UH. By combining Logic UH- component A, Logic UH- component B, and sand, you can effectively repair these cracks in a durable manner. The advanced technical composition of Logic UH plays a key role in preventing water evaporation in the concrete and providing protection against the pressure-induced expansion cracks caused by sulfates. Once treated with Logic UH, your surface gains long-lasting protection against cracking, ensuring its durability over time.

What surfaces are ideal for Logic UH application?

WHERE TO USE

LOGIC UH

  1. Cracks in lower and upper structures
  2. Cold joints
  3. Dilatation (expansion) joints
  4. Grating edges
  5. Pipe edges
  6. Reinforcement in columns

HOW TO USE

LOGIC UH

To prepare the Logic UH mixture, combine components A and B in a 1:1 mixing ratio and mix it with sand. For repairing cracks, open the crack and pour the Logic UH mixture into it. In the case of larger expansion cracks, create a wooden form to hold the Logic UH mixture in place. Allow the mixture to dry for 24 hours, after which the form can be removed, completing the repair process.

How does Logic UH handle pressure-induced expansion cracks?

How does Logic Insulation work ?

Step 1 :
Step 1 :

Surface Evaluation and Material Removal

Initiate the process by inspecting the targeted surface for any cracks or damage. It's essential to remove any excess material to ensure a clean and prepared surface for the application of Logic UH, enhancing the effectiveness of the repair.

Surface Evaluation and Material Removal
Step 2 :
Step 2 :

Surface Marking and Concrete Removal

Clearly mark the area that requires treatment. Utilize a concrete cutting machine to precisely cut the outlined area. Then, proceed to break and remove the concrete within this marked zone, preparing it for the application of Logic UH.

Surface Marking and Concrete Removal
Step 3 :
Step 3 :

Preparation of Logic UH Mixture

To prepare the Logic UH mixture, combine Component A and Component B in a construction bucket in a 1:1 ratio. After thoroughly mixing these components, add sand to create a repair mortar. The quantity of sand needed varies between 9-12 kg, depending on the type used. Prepare the mixture with 0.5 kg of Component A, 0.5 kg of Component B, and approximately 9 kg of sand, mixing until smooth with a construction mixer.

Preparation of Logic UH Mixture
Step 4 :
Step 4 :

Application of Logic UH Mortar

Pour the prepared Logic UH mortar into the prepared area. Allow the mortar to settle for 30 minutes before applying a thin layer of sand on top for enhanced results. For larger expansion cracks, consider using a wooden form to hold the Logic UH mixture in place.

Application of Logic UH Mortar
Step 5 :
Step 5 :

Curing Period for Logic UH

Allow the Logic UH to cure, a process that can take between 6 to 24 hours, depending on the area's size and environmental conditions.

Curing Period for Logic UH
Step 6 :
Step 6 :

Surface Testing and Finalization

After the Logic UH mixture has thoroughly dried, You can then remove any wooden forms used, completing the surface repair process.

Surface Testing and Finalization

Application Areas

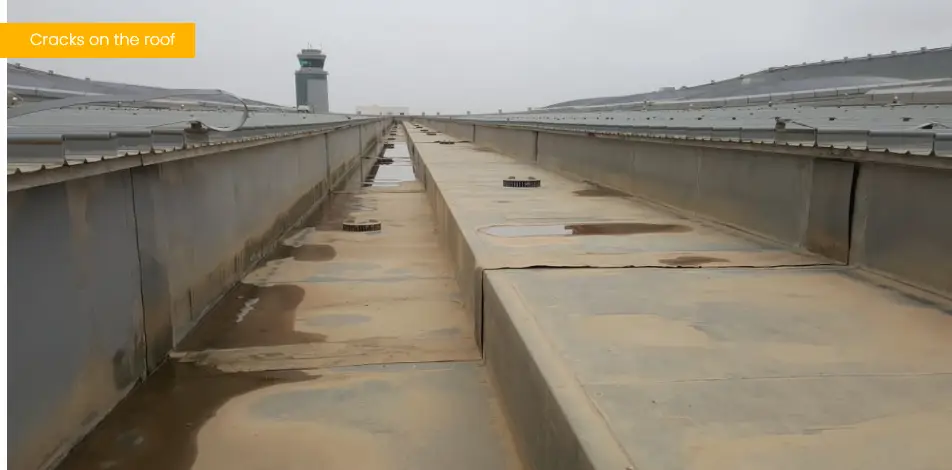

Crack on the roof

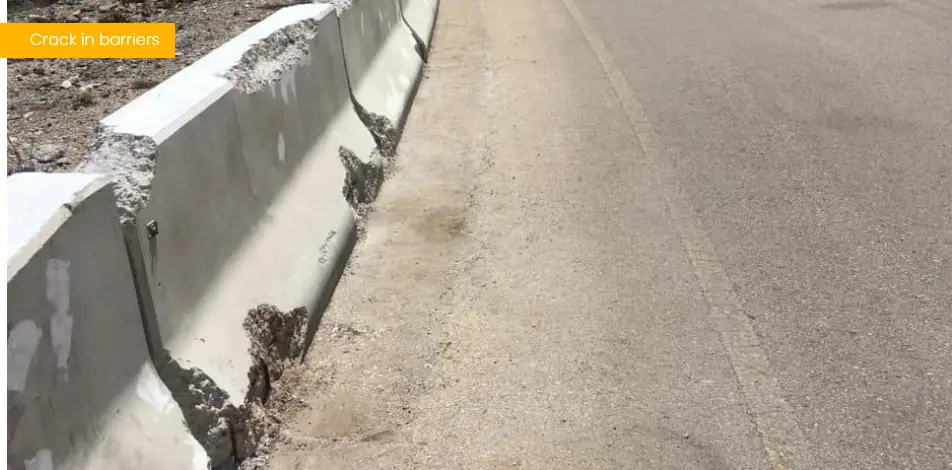

Crack in barriers

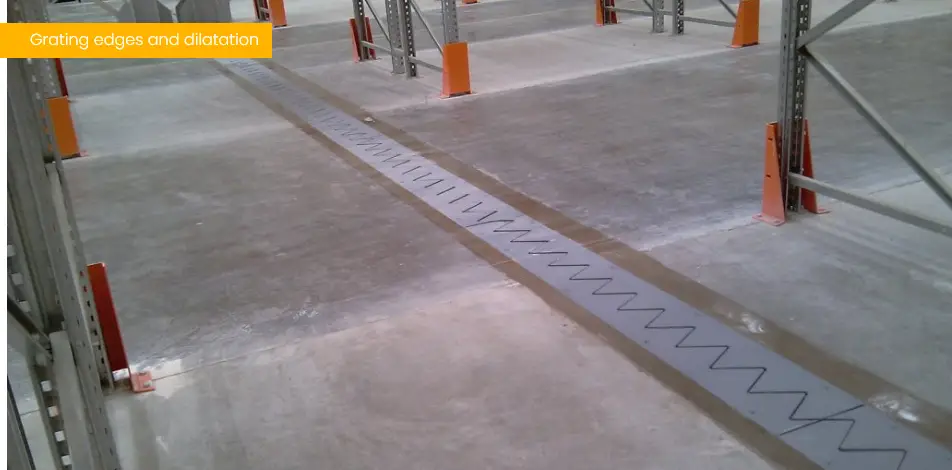

Crack on Grating edges and dilatation

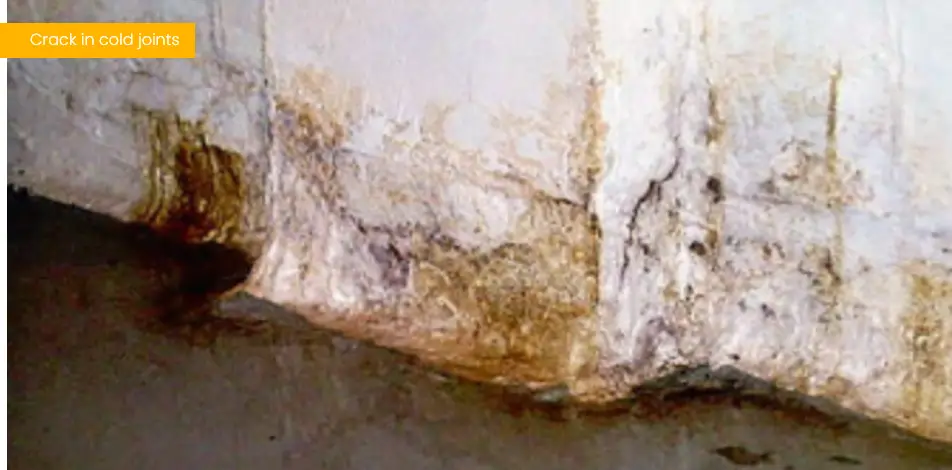

Crack in cold joints

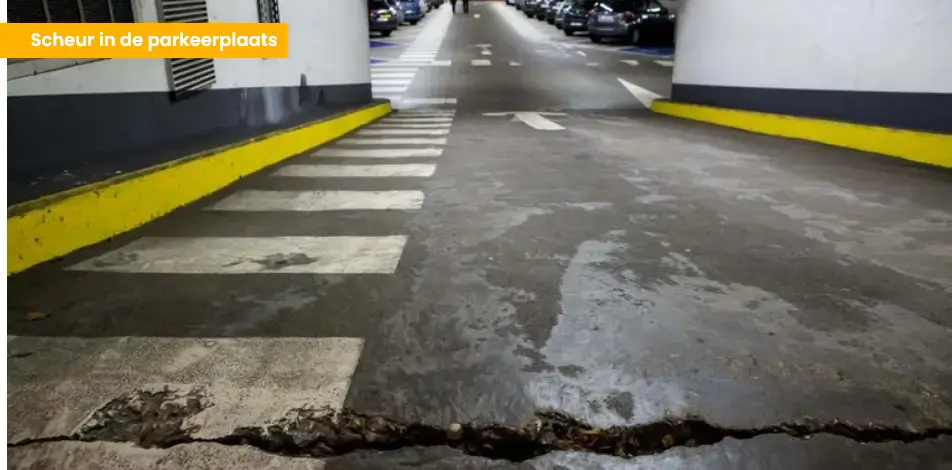

Crack in the parking

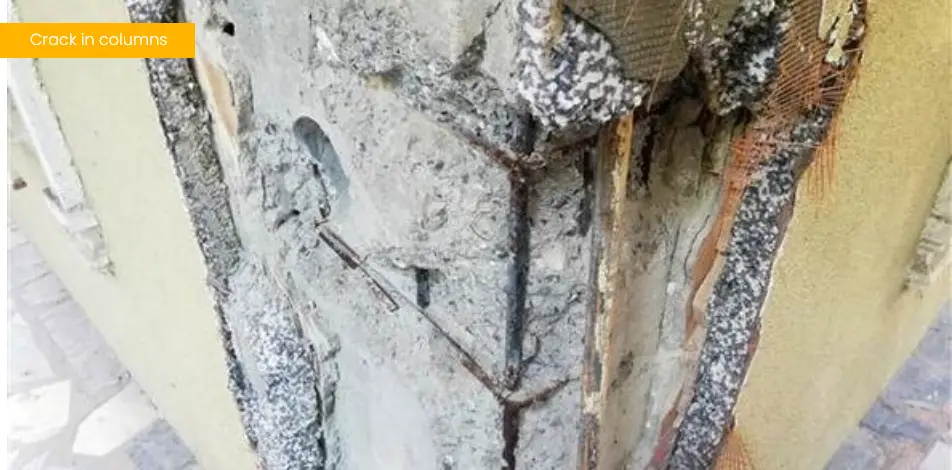

Crack in columns

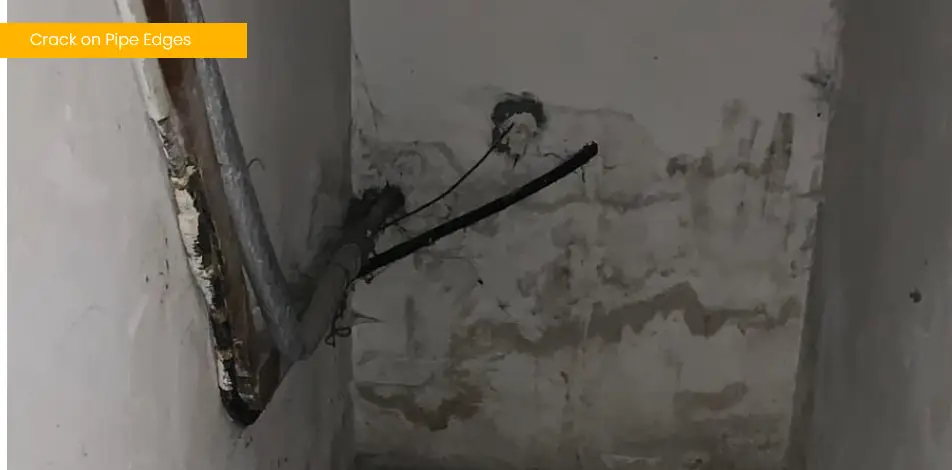

Crack on pipe edges

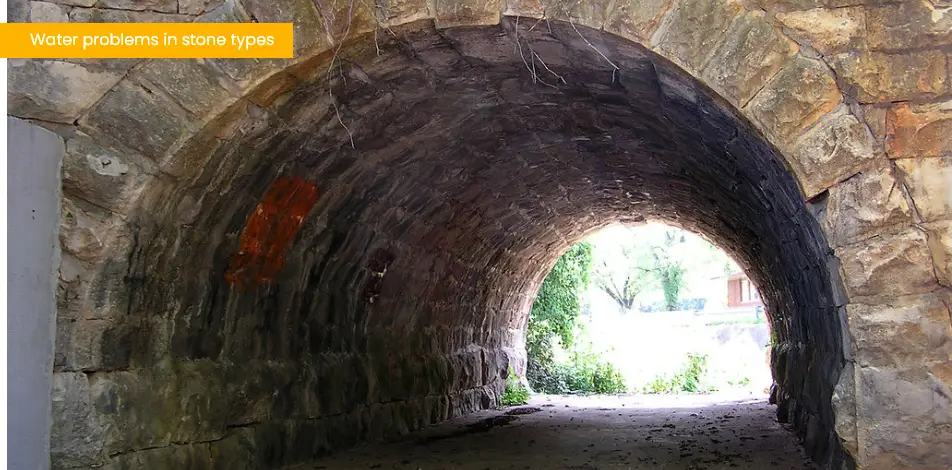

Water problems in stone types
